Maybe Perlin Noise

[johnno56]

... do you mean something like ... The Matrix? Moo Ha Ha Ha ....

[Marcus]

I'm amazed that math can generate textures - rocks, bricks, ....even trees (fractals). It makes me wonder, is our entire universe just one big math composition ?

I'm doing in code the steps I usually take when creating textures in the gimp, creating bumpmaps from noise etc. I need to write more image manipulation functions though, for altering colors.

[1micha.elok]

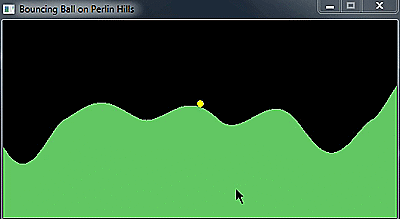

Bouncing ball on Perlin Hills ....

Code:

'===============================
'
' Bouncing Ball on Perlin Hills
'
'===============================
#win32
randomize time()
set window "Bouncing Ball on Perlin Hills", 512, 256, false
set redraw off

green   = [100, 200, 100]
yellow  = [255, 255, 0]

visible scale = 1000, amp = 200
visible terrain=MakeTerrain(10,10), scroll_x, bx = width()/2, by=height()/2, bvy, ty_map = []



'------------
' MAIN LOOP
'------------
while not keydown(KEY_ESCAPE, true)
    'clear screen
    set color 0,0,0;cls

    ' Terrain
    scroll_x = scroll_x + 3.5 'scroll speed
    for x = 0 to width() - 1
        ty_map[x] = height() / 2 + terrain.ValueAt((x + scroll_x) / scale, 0.5) * amp
    next
    set color green
    for x = 0 to width() - 2
        ' Draw terrain fill (vertical line) + edge (diagonal)
        draw line x, ty_map[x], x, height()
        draw line x, ty_map[x], x + 1, ty_map[x + 1]
    next
    ' last vertical line
    draw line width() - 1, ty_map[width() - 1], width() - 1, height()

    ' Ball
    i = min(max(int(bx), 0), width() - 1)
    ty_curr = ty_map[i]
    bvy = bvy + 0.45
    by = by + bvy
    if by + 4 >= ty_curr
        by = ty_curr - 4
        bvy = -bvy * 0.75
    endif
    bx = bx + (width() / 2 - bx) * 0.08
    set color yellow; draw ellipse bx, by, 4,4, true

    redraw
    fwait 60
wend


'-------------
' FUNCTIONS
'-------------
function MakeTerrain(resX, resY)
    t = []
    t.g = dim(resX, resY)
    t.w = resX
    t.h = resY

    for y = 0 to resY - 1
        for x = 0 to resX - 1
            a = rnd() * PI * 2
            t.g[x][y] = [x: cos(a), y: sin(a)]
        next
    next

    t.ValueAt = function(x, y)
        m = this.g
        w = this.w; h = this.h

        x = x * w; y = y * h
        x0 = floor(x); y0 = floor(y)
        x1 = (x0 + 1) % w; y1 = (y0 + 1) % h
        x0 = x0 % w; y0 = y0 % h
        fx = x - floor(x); fy = y - floor(y)

        tl = -fx * m[x0][y0].x - fy * m[x0][y0].y
        tr = (1 - fx) * m[x1][y0].x - fy * m[x1][y0].y
        bl = -fx * m[x0][y1].x + (1 - fy) * m[x0][y1].y
        br = (1 - fx) * m[x1][y1].x + (1 - fy) * m[x1][y1].y

        return Bilinear(tl, tr, bl, br, Quad(0, 1, fx), Quad(0, 1, fy))
    endfunc

    return t
endfunc

' helper functions
function Bilinear(tl, tr, bl, br, x, y)
    ix = 1 - x
    return (1 - y) * (ix * tl + x * tr) + y * (ix * bl + x * br)
endfunc

function Quad(a, b, p)
    p2 = p * p
    p3 = p2 * p
    return a * (1 - 3 * p2 + 2 * p3) + b * (3 * p2 - 2 * p3)
endfunc

[Marcus]

Bouncing ball on Perlin Hills ....

Code:

'===============================
'
' Bouncing Ball on Perlin Hills
'
'===============================
#win32
randomize time()
set window "Bouncing Ball on Perlin Hills", 512, 256, false
set redraw off

green   = [100, 200, 100]
yellow  = [255, 255, 0]

visible scale = 1000, amp = 200
visible terrain=MakeTerrain(10,10), scroll_x, bx = width()/2, by=height()/2, bvy, ty_map = []



'------------
' MAIN LOOP
'------------
while not keydown(KEY_ESCAPE, true)
    'clear screen
    set color 0,0,0;cls

    ' Terrain
    scroll_x = scroll_x + 3.5 'scroll speed
    for x = 0 to width() - 1
        ty_map[x] = height() / 2 + terrain.ValueAt((x + scroll_x) / scale, 0.5) * amp
    next
    set color green
    for x = 0 to width() - 2
        ' Draw terrain fill (vertical line) + edge (diagonal)
        draw line x, ty_map[x], x, height()
        draw line x, ty_map[x], x + 1, ty_map[x + 1]
    next
    ' last vertical line
    draw line width() - 1, ty_map[width() - 1], width() - 1, height()

    ' Ball
    i = min(max(int(bx), 0), width() - 1)
    ty_curr = ty_map[i]
    bvy = bvy + 0.45
    by = by + bvy
    if by + 4 >= ty_curr
        by = ty_curr - 4
        bvy = -bvy * 0.75
    endif
    bx = bx + (width() / 2 - bx) * 0.08
    set color yellow; draw ellipse bx, by, 4,4, true

    redraw
    fwait 60
wend


'-------------
' FUNCTIONS
'-------------
function MakeTerrain(resX, resY)
    t = []
    t.g = dim(resX, resY)
    t.w = resX
    t.h = resY

    for y = 0 to resY - 1
        for x = 0 to resX - 1
            a = rnd() * PI * 2
            t.g[x][y] = [x: cos(a), y: sin(a)]
        next
    next

    t.ValueAt = function(x, y)
        m = this.g
        w = this.w; h = this.h

        x = x * w; y = y * h
        x0 = floor(x); y0 = floor(y)
        x1 = (x0 + 1) % w; y1 = (y0 + 1) % h
        x0 = x0 % w; y0 = y0 % h
        fx = x - floor(x); fy = y - floor(y)

        tl = -fx * m[x0][y0].x - fy * m[x0][y0].y
        tr = (1 - fx) * m[x1][y0].x - fy * m[x1][y0].y
        bl = -fx * m[x0][y1].x + (1 - fy) * m[x0][y1].y
        br = (1 - fx) * m[x1][y1].x + (1 - fy) * m[x1][y1].y

        return Bilinear(tl, tr, bl, br, Quad(0, 1, fx), Quad(0, 1, fy))
    endfunc

    return t
endfunc

' helper functions
function Bilinear(tl, tr, bl, br, x, y)
    ix = 1 - x
    return (1 - y) * (ix * tl + x * tr) + y * (ix * bl + x * br)
endfunc

function Quad(a, b, p)
    p2 = p * p
    p3 = p2 * p
    return a * (1 - 3 * p2 + 2 * p3) + b * (3 * p2 - 2 * p3)
endfunc

Awesome!

[kevin]

Great demo, particularly as it's only 100 lines of code. I look forward to studying the code..... thanks for sharing....

[johnno56]

Interesting. Replace the "ball" with a motor cycle or car; apply a little physics to the vehicle; control the speed of the scroll; add a timer; score based on timer; persistent high score... Could be the makings of an "endless runner" type game... Moo Ha Ha Ha....

Very cool demo!!

[Marcus]

Textures and landscape based on that perlin noise thing, everything generated in code. It looks a bit like Mordor at the moment, will post the source code when things look better It's a really large map that has been divided into "chunks", and I only render the chunks that are determined visible.

[johnno56]

All that heat and no steaks? Mmmm... B.B.Q's....
